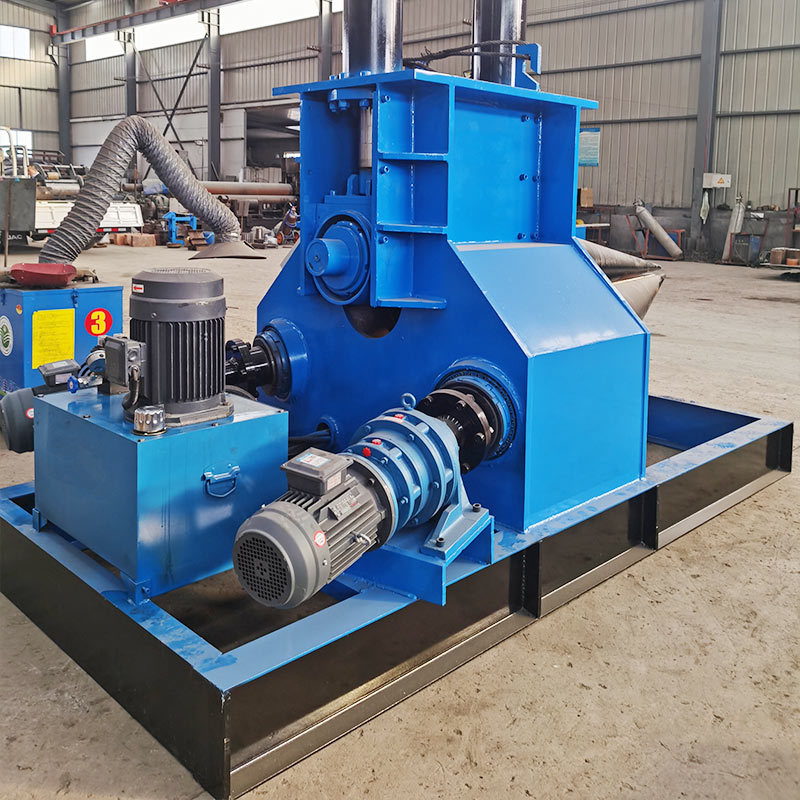

High Precision Metal Cone Rolling Machine 4m/min Electricity 2tons - 2.5tons

The Sheet Metal Cone Rolling Machine Is Capable Of Achieving High-precision Cone Forming, Ensuring That The Size And Shape Of The Final Product Meet The Design Requirements.

Description:

Sheet metal cone rolling machines are specifically engineered to bend lightweight plates, aluminum, and stainless steel into exact conical forms. Driven by an electric motor and planetary gearbox, these machines utilize hydraulic pistons on the pinch and lateral rolls to ensure accurate positioning. Additionally, they feature five digital readouts that facilitate precise roll adjustments, enhancing the overall accuracy of the bending process.

Specifications:

Applications:

A sheet metal cone rolling machine is a specialized industrial tool designed for bending metal sheets into conical shapes. It is particularly effective for working with materials such as aluminum, stainless steel, and other lightweight plates. The machine operates using hydraulic pistons that control the pinch and lateral rolls, allowing for precise positioning and shaping of the metal.

Key features of these machines include:

· Electric Motor and Gearbox: Provides the necessary power for operation.

· Hydraulic System: Ensures smooth and accurate bending of the metal sheets.

· Digital Readouts: Typically equipped with multiple digital displays for precise roll adjustments, enhancing accuracy during the bending process.

These machines are widely used in various industries, including manufacturing, construction, and metalworking, where conical shapes are required for components such as ducts, funnels, and other structural elements

·  Specifically designed for rolling conical shapes from lightweight plates, aluminum, or stainless steel materials.

·  The pinch roll and lateral rolls are driven by hydraulic cylinders for enhanced performance.

·  Equipped with overload protection for added safety.

·  All rolls are operated by an electric motor and a planetary gearbox.

·  Features digital displays for straightforward roll positioning.

·  Includes a hydraulic drop end for the easy removal of completed ferrules.

·  User-friendly operation facilitated by a mobile control panel.

·  Constructed with welded steel frames for durability.

·  Rolls made from induction-hardened forged or rolled SAE 1050 (CK 45) steel.

·  Incorporates a conical bending device.

·  Safety system includes a protective barrier around the machine and an emergency push button.

·  Features a dual-speed system for flexibility.

·  Rolls are ground and polished for optimal performance.
